SEO – Phoenix 300 Multi : Automatic 3 Syringes systems Contact Angle Analyzer

Phoenix-multi Brochure

Overview

The Phoenix series is designed to offer the flexibility required for QA, R&D, and engineering development

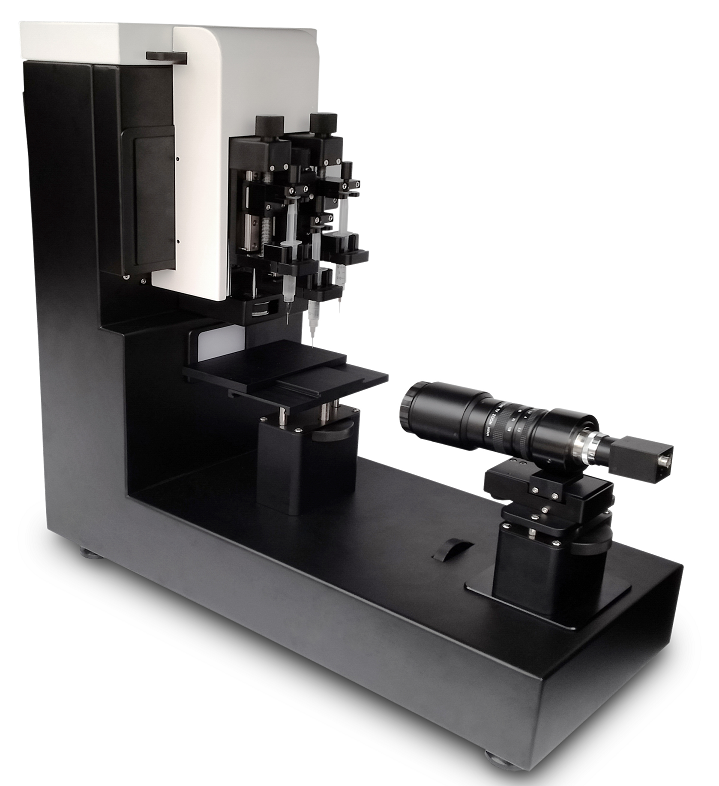

The Phoenix 300 Multi series is a special 3 syringes automatic contact angle system can facilitate simultaneous dispensing three different liquids. It has a specially designed optical system for reducing the light scattering and is mounted with a camera easily adjusted in all directions.  The fluids are dispensed from a manually controlled syringe system or semi auto/automatically by embedded a stepping motor system.  The position of the sample stage can be precisely adjusted along the X, Y or Z-axis for fine image analysis

Features

  • Automatic and rapid sample analysis and high-speed dynamic image capture
  • Improved precision and reproducibility by the elimination of operator error
  • Data checking instantly without open analysis window by preview result function
  • User-friendly surface energy calculator function with 3 syringes system
  • User-friendly test conditions memory recipe function on each sample
  • Available to connect to Laptop or Desktop PC via USB port
  • Auto calculation of surface energy and work of adhesion
  • High-resolution and powerful image capture system
  • Sessile drop method and automated drop to touch-off
  • Fully automated software control of 3 syringes independently
  • Automatically drop volume control by software
  • Smart capture for super hydrophilic material
  • Head module up and down automatically
  • Precise calculation of drop volume
  • Data comparison function

Typical Application

  • Semiconductor applications
  • Detection of organic contamination on PCB and electronic components
  • Evaluation of cleanliness / treatment / coating processing
  • Hydrophobicity and hydrophilicity of solid surfaces
  • Biological application such as the detection and characterization of proteins
  • Adsorption / Wettability of powder and pharmaceutical products
  • Analysis of plasma treatment to increase the wettability of polymers surfaces

1.Static Contact angle measurement

 Measurement range : 0~180°

2. Captive dynamic contact angle (Applied only Smart -A, Smart-T, model only)

3. Easy Surface Energy calculator (GGFY, Owens Wendt, Lewis method)

Using measured contact angle data itself

4. Surface tension by pendent drop method

(1mN/m ~ 1000nM/m)

5. Curved surface sample measuring function

6. Automatic capture at after thermodynamic Equilibrium

(Applied only “Smart -T” model)

Able to get contact angle data from three phases thermodynamic equilibrium

Software function

 1. Static contact angle calculation by three modes

   - Tangent line method 1(For Tilting contact angle and bigger drop volume)

   - Tangent line method 2(For common measurement)

   - Trigonometric function (For low angle measurement : less than 30degree)

2. Realtime Preview Result before capture function

- Able to check condition of image before capture - Measurement data will be display before capture

- Able to check an instant contact angle and surface tension data

3. Automatic capture at after thermodynamic Equilibrium

Contact angle is based on three phases equilibrium, but it is dependent on Sample’s property. There is different equilibrium time for different sample.  User is able to set equilibrium  time as above.

4. Manual mode for critical sample

5. Auto calculate average

- Automatic calculation of the average contact angle data by the software based on the frames captured.

6. Graphical data

7. Four types of capture modes

  •    Single mode -  One by one capture image
  •    Sequence mode -  Able to check by interval time base
  •    Verify mode -   Will show only one Maximum frequent image
  •    Programmed mode - Use it with Tilting, Time base by triggering

8. Export captured date to Excel (2 modes)

  •    Selected only one image export on whole measured image

  • All images export at once into an collection

9. Manual define Base line  function

  •  User can define the baseline manually for difficult to calculate contact angle

10. Precisely drop volume calculate

  •  Using SEO Pixel Width calibration, user can calculate the drop volume of the liquid precisely

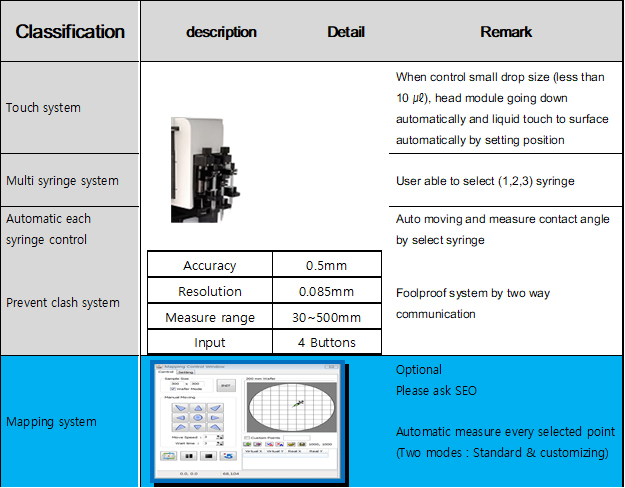

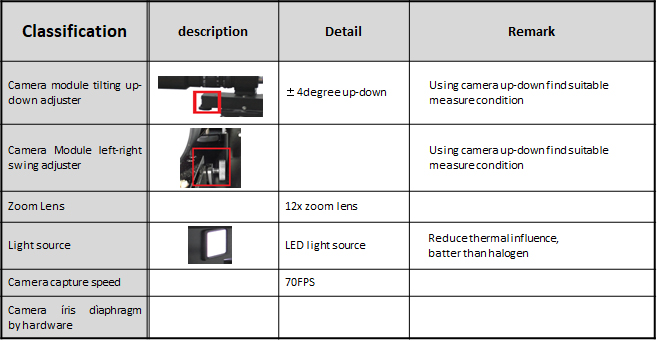

Hardware Features

Data Analysis Specification

  Method Accuracy Software resolution Range Data information extension
Static contact angle Tangent line metnod1 ±0.1degree ±0.01degree 0~180° Average contact angle, left contact angle, right contact angle, drop volume, height, base line length, base area, measured time, wetting energy, spreading coefficient, work of adhesion
Tangent line metnod2
Trigonometric function
Dynamic contact angle Captive method ±0.1degree ±0.01degree 1~180° Advance angle, Receding angle, Hysterisis, drop volume, etc.,
Tilting method ±0.1degree ±0.01degree 0~90° Work of adhesion, Advance angle, Receding angle, Hysterisis, drop volume, etc.,
Surface tension Pendent drop method ±0.1mN/m ±0.01mN/m 1~1000

mN/m

Drop volume, Surface tension
Surface free energy G.G.F.Y ±0.1mN/m ±0.01mN/m Surface free Energy
Owens-Wendt ±0.1mN/m ±0.01mN/m Surface free Energy, Dispersive value and Polar value
Lewis (Acid/Base) ±0.1mN/m ±0.01mN/m Surface free Energy, Dispersive, Polar, Acid, base value
Capture speed CCD 0~70FPS
Machine vision Resolution 640x480
