Overview

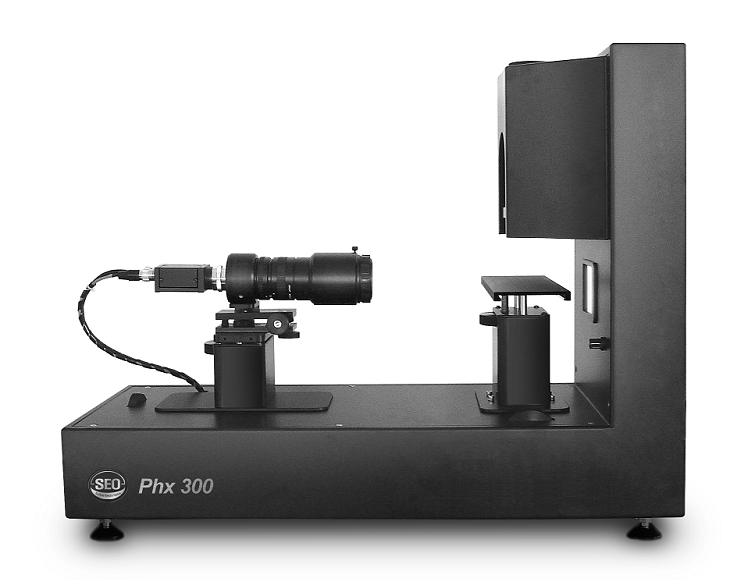

The Phoenix series is designed to offer the flexibility required for QA, R&D and engineering development

The Phoenix series has a specially designed optical system for reducing the light scattering and is mounted with a camera easily adjusted in all directions.  The fluids are dispensed from a manually controlled syringe system or semi auto/automatically by embedded a stepping motor system.  The position of the sample stage can be precisely adjusted along the X, Y or Z-axis for fine image analysis

Features

• Manual and rapid sample analysis and high-speed dynamic image capture
• Improved precision and reproducibility by the elimination of operator error
• Available to connect to notebook or desktop PC via USB port
• Auto calculation of surface energy and work of adhesion
• High resolution and powerful image capture system
• Automatic & manual image analysis

Typical Application

• Semiconductor applications
• Detection of organic contamination on PCB and electronic components
• Evaluation of cleanliness / treatment / coating processing
• Hydrophobicity and hydrophilicity of solid surfaces
• Biological application such as the detection and characterization of proteins
• Adsorption / Wettability of powder and pharmaceutical products1.Static Contact angle measurement Measurement range : 0~180°

  2. Easy Surface Energy calculator (GGFY, Owens Wendt, Lewis method)

  Using measured contact angle data itself



  3. Surface tension by pendent drop method

  (1mN/m ~ 1000nM/m)



  4. Curved surface sample measuring function





  Software function

   1. Static contact angle calculation by three modes



     - Tangent line method 1(For Tilting contact angle and bigger drop volume)

     - Tangent line method 2(For common measurement)

     - Trigonometric function (For low angle measurement : less than 30degree)

  2. Realtime Preview Result before capture function



  - Able to check condition of image before capture - Measurement data will be display before capture

  - Able to check an instant contact angle and surface tension data

  3. Manual mode for critical sample

  4. Auto calculate average

  - Automatic calculation of the average contact angle data by the software based on the frames captured.

  5. Graphical data

  6. Four types of capture modes



  •    Single mode -  One by one capture image
  •    Sequence mode -  Able to check by interval time base
  •    Verify mode -   Will show only one Maximum frequent image
  •    Programmed mode - Use it with Tilting, Time base by triggering

  7. Export captured date to Excel (2 modes)

  •    Selected only one image export on whole measured image



  • All images export at once into an collection



  8. Manual define Base line  function

  •  User can define the baseline manually for difficult to calculate contact angle



  Analysis of plasma treatment to increase the wettability of polymers surfaces
