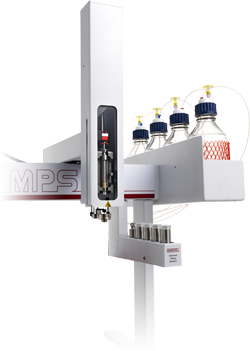

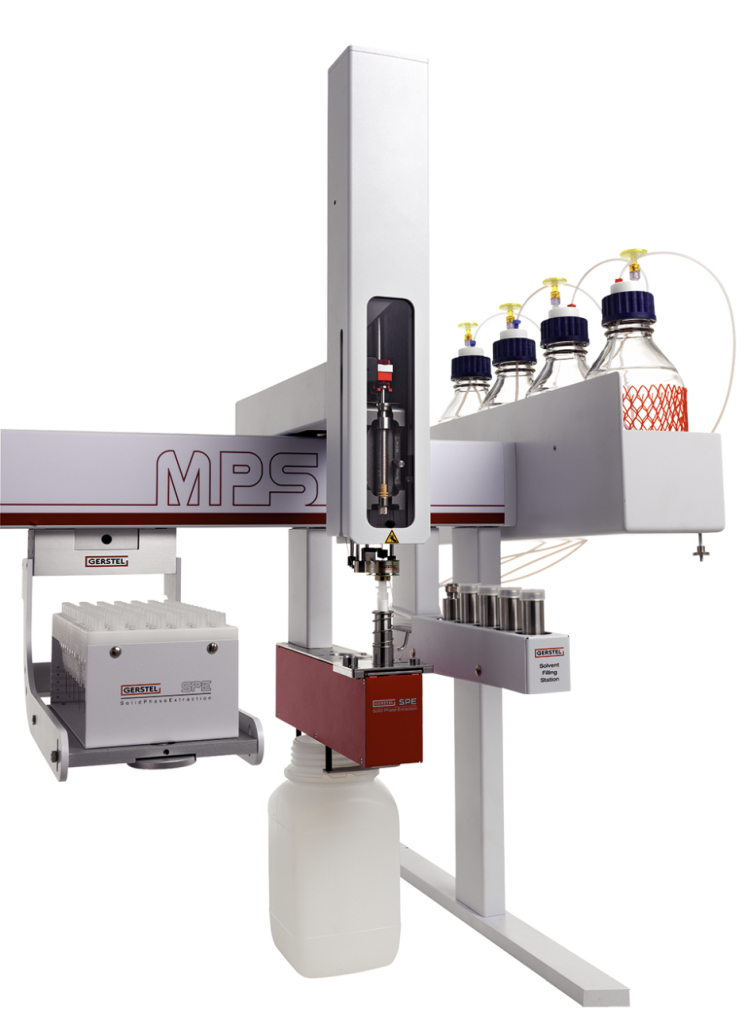

Solvent Filling Station

For running automated high throughput applications overnight or over the weekend, in many cases large volumes of solvents have to be available. Therefore GERSTEL developed the Solvent Filling Station SFS for the MultiPurpose Sampler MPS.

The SFS has four one liter solvent reservoirs. Solvents can easily be loaded at the filling station which also provides an additional waste position connected to a large waste container.

When using the maximum of three solvent filling stations one MPS can provide 12 different solvents in high capacities.

Applications of SFS:

  • Automated Solid Phase Extraction SPE
  • Automated Disposable Pipette Extraction
  • Syringe conditioning for LC and LC/MS





Product Specifications

Uses Dedicated Solvent dispensing station for the GERSTEL MultiPurpose Sampler (MPS) for up to four solvents with one waste position. For use with MPS SPE accessory
System Configuration
  • automated operation based on the GERSTEL MPS
  • up to 3 Solvent Filling Station can be operated with one MPS
Components
  • solvent station
  • solvent reservoir
Solvent station
  • 4 solvent dispensing positions
  • 1 waste position
  • 5 litre waste conister, DIN GL 45
  • dimensions 15.3 x 4.5 38.5 cm (H x W x D)
  • weight 3 kg
Solvent Reservoir
  • 4 x 1 litre solvent bottles, DIN GL 45
  • dimensions 15 x 11.6 x 46.4 cm (H x W x D)
  • weight 3 kg
Materials
  • solvent bottles made of Duran glass
  • PTFE tubing for solvent delivery
  • PTFE fittings
  • stainless steel connectors for dispensing and waste positions
  • HDPE waste canister
  • silicone tubing used for solvent disposal, waste position
Controls
  • in combomination with GERSTEL MAESTRO Software, integrated in the Agilent® Technologise ChemStation Software or opperated in stand-alone mode
  • only one method and one sequence table required for the complete system including GC/MS when integrated in the ChemStation software.
Operating Conditions
  • 15 … 35oC
  • relative humidity max. 50 – 60%, non-condensing
  • max. 4615 m above sea level<.li>
Storage conditions
  • -20 … 50oC
  • relative humidity max. 50 – 60%, non-condensing
  • max. 4615 m above sea level
